Titan posthole accelerometer being held in a technician's gloved hands

Titan Posthole

Force balance triaxial accelerometer suited for national networks and research.

Strong motion & free-field studies

The accelerometer is housed in a waterproof stainless steel enclosure and can be deployed in a direct burial posthole or cased borehole, which enables co-location with broadband posthole seismometers. The Titan Posthole features industry leading dynamic range that, when combined with ultra-low self-noise performance, mitigates cultural noise resulting in precise measurements and high quality data.

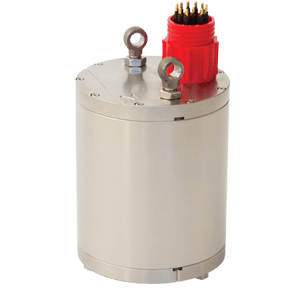

Stainless steel titan posthole accelerometer standing upright

Industry Leading Performance

This is the first Titan accelerometer to incorporate software selectable full scale range and offset zeroing capabilities. Operators will also appreciate the instrument’s low power consumption, making the Titan Posthole the instrument of choice for difficult to access or remote deployments, where site visits should be minimized.

Ease of Use

Electronically selectable full scale range facilitates remote sensor control when deployments are distant or difficult to access. Users can use the control pin on the connector on the Titan Posthole Accelerometer to enable calibration, initiate automatic offset zeroing, or to perform a unit self-test.


Full scale range ±0.25 g to ±4 g with independent horizontal and vertical range selection
High data quality Best in class thermal stability and high accuracy provide quality data.
Ultra-low self-noise Low self-noise comparable to some broadband seismometers.
IP68 Rating Rated to IP68 in a stainless steel enclosure with a waterproof shroud cable.
Integrated web server Web server provides efficient instrument management and control.
Polar Certified This Polar Certified Model is available for operating temperatures down to -50°C.

Permanent/National Networks

These networks are important to understanding the seismic hazards in an area, which in turn informs the creation or revision of local building codes. With its exceptional quality, this seismic data is also used in a range of research applications meant to further our understanding of the structures and processes occurring in the world beneath our feet.

Two communication dishes set on large concrete pads in a mountain region
