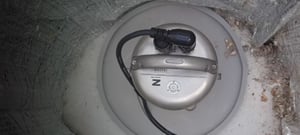

Trillium Horizon 360 seismometer down in vault connected by a cable

Trillium Horizon 360

The latest addition in the Horizon series.

Commitment to ongoing instrumentation improvement

The Trillium Horizon 360 model brings an even lower noise floor and corner frequency to the exceptionally versatile Trillium Horizon design. This lightweight, easy-to-deploy sensor can be both direct buried at shallow depth or set on a pier. The Horizon is ideal for instrument pools; it gives you all the versatility you need with a smaller financial investment and less storage space required than purchasing both vault and direct-bury instruments.

Stainless steel Trillium Horizon 360 seismometer standing upright

Local, regional & teleseismic studies

The Trillium Horizon is ideal for local, regional and teleseismic studies having a response flat to velocity from 360 seconds to 155 Hz and exceptionally low self-noise. Operators will appreciate the low power consumption, automatic mass centering and robust no-mass lock design inherent in all Trillium seismometers.

A highly integrated station solution

When using the Horizon with our popular Centaur digitizer, you’ll have access to a digital leveling bubble through the Centaur GUI. The virtual leveling bubble makes for easy leveling down a dark hole, or once buried, gives you the ability to check levelness at any time.


Water immersible Immersible to 10 m (able to survive indefinitely in a flooded vault)
Flexible deployment Top-mounted connector to facilitate shallow direct bury or vault installs.
Robust design Stainless steel construction that is resistant to the elements.
Quick deploy Highly portable, features a digital bubble level for easy downhole leveling.
Low Power Ultra-low power consumption (250 mW), 50% lower than previous generation.
Polar certified This Polar Certified Model is available for operating temperatures down to -50°C.

Our optional accessories ensure fast and easy deployment

Sensor cables, transport case, alignment and leveling toolkit, insulating cover, lifting cable and bubble level cover.

Two pelican transport cases side by side, one closed and one sitting open with a seismometer inside
